Temporary spill berm seals off spills from the environment, nearby drains and doorways

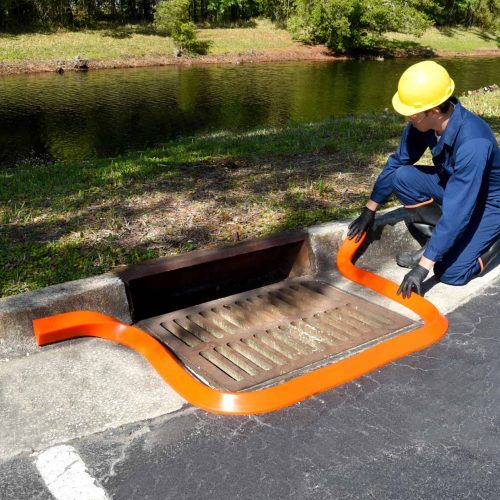

Many storm drains empty directly into waterways making them a key area to protect in the case of a spill.
The Ultra-Spill Berm is a quick and easy to deploy spill response product that will divert hazardous material away from drains and other sensitive areas.
- Spill response
- Temporary secondary containment
- Sealing off of doorways during washdown operations
- Standard 10-foot sections can be cut to various lengths to meet custom needs.
- Unique, urethane material "weeps" into small cracks and crevices to seal off liquid flow.
- Spill berm is non-absorbing and easily cleaned for repeated use.
- Also available in black to help hide dirt and grime. (Part# 2050)
Due to the nature of softer urethane, the physical properties of these products may change with exposure to certain environmental conditions like temperature, humidity, and UV radiation. Regular inspection of the stored product should be done to ensure it is in a usable state.
|Part #||Model||Color||Dimensions in. (mm)||Weight lbs. (kg)|
|2100||Ultra-Spill Berm||Orange||120 x 4 x 2.3 (3048 x 101.6 x 57.2)||31 (14.1)|
|2050||Ultra-Spill Berm||Black||120 x 4 x 2.3 (3048 x 101.6 x 57.2)||31 (14.1)|
|Part #||Model||Product Image||Dimensions in. (mm)||Weight lbs. (kg)|
|2101||Connector||7 x 4 x 1 (177.8 x 101.6 x 25.4)||2 (.9)|
|2102||Corner||4 x 4 x 2.3 (101.6 x 101.6 x 57.2)||3 (1.4)|
|2104||Carrying Case||25.5 x 25.5 x 5 (647.7 x 647.7 x 127)||6 (2.7)|
Frequently Asked Questions
Can I cut the Ultra-Spill Berm?
Yes, the Ultra-Spill Berm can be cut to size with a utility knife or other sharp blade. As always, be sure to wear the appropriate PPE and use caution when cutting.
Can I connect Ultra-Spill Berms together if I need to protect more than 10-feet?
Yes, by using the optional connector (Part# 2101), multiple berms can be joined together to form larger/wider containment areas.
Do you have anything taller 2 1/4"? I have the potential for some fairly large spills.
Yes, the Ultra-Spill Berm Plus is 4 1/2″ tall and designed for use when larger spills may occur.
Your compatibility chart says 'NR' for the chemical that I'm using. What exactly does that mean?
‘NR’ stands for ‘Not Recommended’. HOWEVER, it is worth noting that most chemical compatibility guides (ours included) are based on a one-year immersion test. In other words, the material being tested is completely immersed in the chemical in question. After one year, the material is removed and checked for any degradation. Needless to say, a spill response product is not going to be exposed to a chemical for a year. So it’s possible that the Ultra-Spill Berm will be effective against a spill of a chemical that is listed as ‘NR’. The best way to know for sure is to test for yourself. Please contact our customer service team and they will be able to send you a no-charge sample.
Is there a way to make my Ultra-Spill Berm installation more permanent?
Yes, cyanoacrylates can be used to bond the Ultra-Spill Berm to a surface. Cyanoacrylates are a family of strong fast-acting adhesives commonly sold under names such as “Super Glue” and “Krazy Glue”.
Can I leave the Ultra-Spill Berm outdoors?
The Ultra-Spill Berm is made with urethane and will degrade/break down in extended UV exposure. It is recommended that spill berms only be exposed for as long as required to contain and clean-up a spill. Long-term outdoor use is not recommended.
How do I clean the Ultra-Spill Berm after it's been used?
Typically, a standard soap and water mixture is all that is needed to clean a spill berm. Once the Ultra-Spill Berm has been cleaned it should be allowed to air dry and then returned to its original packaging.
Is the Ultra-Spill Berm reusable?
Yes, the Ultra-Spill Berm is reusable provided that it has not been exposed to a chemical that has caused any degradation.
How should the Ultra-Spill Berm be stored?
The Ultra-Spill Berm should be stored in a cool, dry area in the carrying case that it is shipped in. An optional hard-plastic carrying case is available (Part# 2104) if sturdier packaging is desired. It is important that the Ultra-Spill Berm does not touch itself because, over time, the touching areas will fuse together. This can be prevented by using the cardboard separators in the case the unit is shipped in or by wrapping the entire spill berm with plastic sheeting.
Can I drive over it?
It is not recommended that the Ultra-Spill Berm be driven over. The softer nature of the material can be damaged under vehicle tires and other equipment.
More Info / Downloads
Helps Comply with These Rules & Regulations
- ADA Accessibility Guidelines for Buildings and Facilities (ADAAG)
- Stormwater Management Regulation 40 CFR 122.26
- EPA Hazardous Waste Discharges 40 CFR 263.30
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416021004 Ultra-Spill Berm Ultra-Spill Berm (Part #2100)
- UPC 808416020502 Ultra-Spill Berm Ultra-Spill Berm (Part #2050)
- UPC 808416021011 Ultra-Spill Berm Connector (Part #2101)
- UPC 808416021028 Ultra-Spill Berm Corner (Part #2102)
- UPC 808416021042 Ultra-Spill Berm Carrying Case (Part #2104)
