Drive-over barrier provides heavy-duty custom containment
There are many ways to create a custom spill containment area. Each has its own advantages. But whether it’s concrete, steel or one our own spill berms, there’s a limitation. You can’t drive over the walls. Until now.

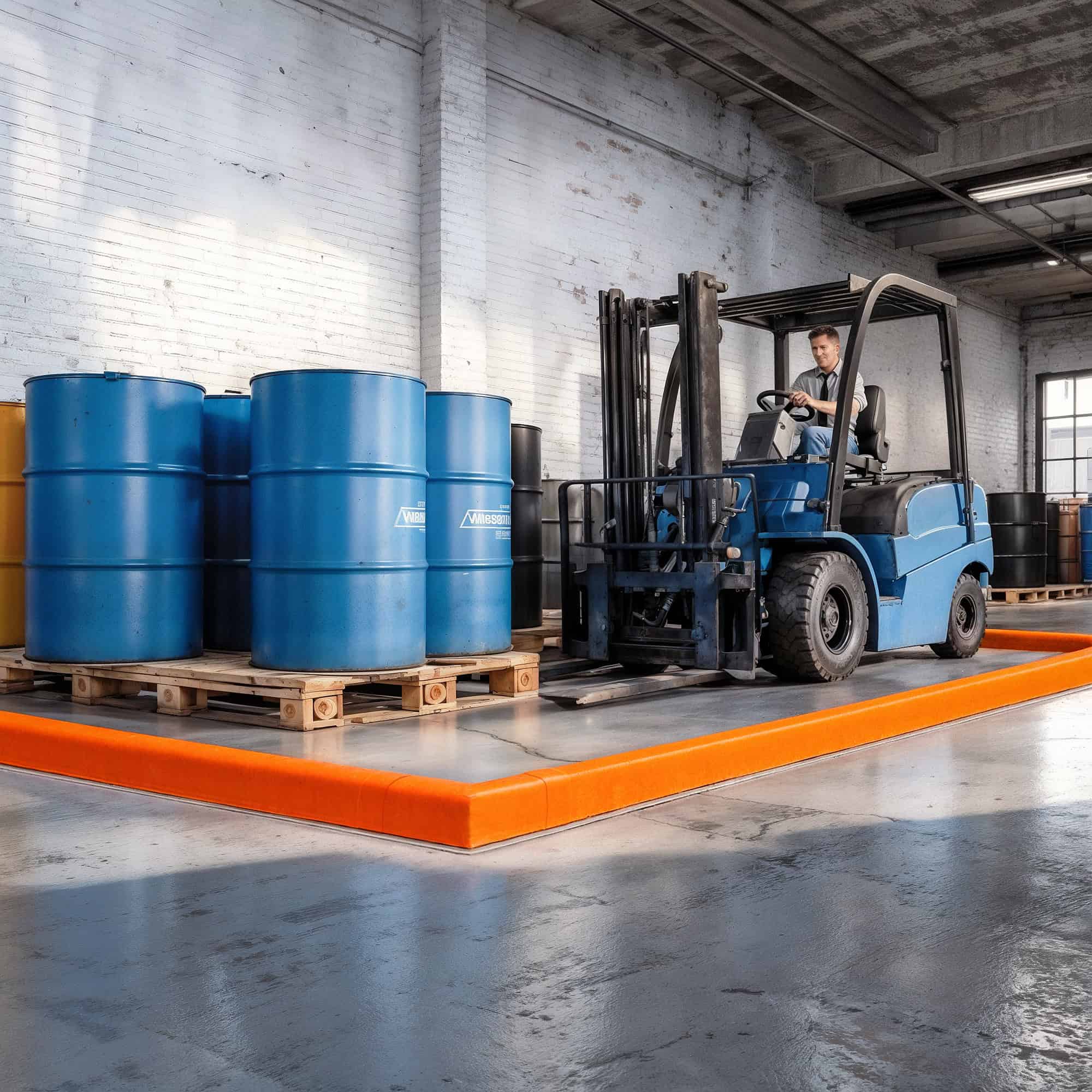

The Ultra-Berm Builder, Plus Model has the versatility of the standard model but the additional ruggedness and mounting option for a more permanent installation that can be driven over.
Product Highlights
- Create permanent containment on concrete, asphalt and most sealed areas.
- Heavy-duty, 40-ounce, vinyl-coated fabric can withstand traffic from trucks, forklifts and other vehicles.
- Open-cell foam core compresses to approximately 1/4" when driven over and springs back to shape when vehicles pass.
- Secures to the floor with sealant (not included) and is reinforced with pre drilled aluminum mounting strips (included) and steel anchors (included).
- Can be used with standard Ultra-Berm Builder.
| Part # | Model | Product Image | Quantity | Dimensions ft. (m) | Weight lbs. (kg) | Notes |
|---|---|---|---|---|---|---|
| 8671 | Straight Wall Section |  | 1/box | 12 x 0.5 x 0.2 (3.7 x 0.1 x 0.1) | 11.50 (5.22) | Includes Mounting Strips & Anchors |
| 8672 | Corner |  | 2/box | 0.9 x 0.5 x 0.2 (0.3 x 0.1 x 0.1) | 2 (0.9) | Includes Mounting Strips & Anchors |
| 8673 | Wall End |  | 2/box | 0.3 x 0.5 x 0.2 (0.1 x 0.1 x 0.1) | 2 (0.9) | Includes Mounting Strips & Anchors |
Swipe to scroll table
| Part # | Model | Product Image | Quantity | Dimensions ft. (m) | Weight lbs. (kg) | Notes |
|---|---|---|---|---|---|---|
| 8634 | Straight Wall Section | | 1/box | 12 x 0.5 x 0.3 (3.7 x 0.2 x 0.1) | 14 (6.35) | Includes Mounting Strips & Anchors |
| 8635 | Corner | | 2/box | 1 x 0.5 x 0.3 (0.3 x 0.2 x 0.1) | 4 (1.81) | Includes Mounting Strips & Anchors |
| 8636 | Wall End | | 2/box | 0.6 x 0.5 x 0.3 (0.2 x 0.2 x 0.1) | 3 (1.36) | Includes Mounting Strips & Anchors |
Swipe to scroll table
| Part # | Model | Product Image | Quantity | Dimensions ft. (m) | Weight lbs. (kg) | Notes |
|---|---|---|---|---|---|---|
| 8637 | Straight Wall Section | | 1/box | 12 x 0.7 x 0.5 (3.7 x 0.2 x 0.2) | 21 (9.53) | Includes Mounting Strips & Anchors |
| 8638 | Corner | | 2/box | 1.3 x 0.7 x 0.5 (0.4 x 0.2 x 0.2) | 7 (3.18) | Includes Mounting Strips & Anchors |
| 8639 | Wall End | | 2/box | 0.6 x 0.7 x 0.5 (0.2 x 0.2 x 0.2) | 9 (4.08) | Includes Mounting Strips & Anchors |
Swipe to scroll table
| Part # | Model | Product Image | Quantity | Dimensions ft. (m) | Weight lbs. (kg) |
|---|---|---|---|---|---|
| 8644 | Floor Sealant |  | 6/box | N/A | 1 (.5) |
| 8645 | Vinyl Adhesive |  | 1/box | N/A | .5 (.2) |
| 8669 | Barrier Repair Material | 1/box | 10 x 0.3 x 0 (3 x 0.1 x 0) | 1 (0.5) |
Swipe to scroll table
Need help determining berm size? Check out our secondary containment calculator.
FAQs
Resources & Docs
Compliance & Regs
Additional Info.
FAQs
Frequently Asked Questions
-
How is the Ultra-Berm Builder Plus installed?
The Ultra-Berm Builder Plus adheres to the floor with sealant (not included) and is reinforced with pre drilled aluminum mounting strips (included) and steel anchors (included).
-
What is the Ultra-Berm Builder Plus made of?
The Ultra-Berm Builder Plus is an open-cell foam that is wrapped in vinyl.
-
Can I step on the Ultra-Berm Builder's sidewalls?
Yes, the Ultra-Berm Builder’s sidewalls are designed to be able to be stepped on and/or rolled over with light, wheeled equipment. The open-cell foam barrier will spring back after the weight is removed.
-
Is the installation of the Ultra-Berm Builder Plus permanent? Can I remove it?
The Ultra-Berm Builder Plus is meant to a “long-term” installation. Should it become necessary, it can be removed by first backing out the screws in the mounting strips and then using a flat-bladed shovel to remove the berm.
-
Can the Ultra-Berm Builder Plus be cut to size for a more custom fit?
Yes, the Ultra-Berm Builder Plus is designed to be easily cut if necessary. Simply use a utility knife and a straight edge for the berm and a hack saw for the aluminum mounting strips (NOTE: Always wear the appropriate personal protective equipment (PPE)).
Resources & Docs
More Info / Downloads
Compliance & Regs
This product may not address any specific regulations but if you have any questions, we’re here to help.
Additional Info.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416101218 Ultra-Berm Builder® Straight Wall Section (Part #8671)
- UPC 808416101225 Ultra-Berm Builder® Corner (Part #8672)
- UPC 808416101232 Ultra-Berm Builder® Wall End (Part #8673)
- UPC 808416102765 Ultra-Berm Builder® Straight Wall Section (Part #8634)
- UPC 808416102772 Ultra-Berm Builder® Corner (Part #8635)
- UPC 808416102789 Ultra-Berm Builder® Wall End (Part #8636)
- UPC 808416102796 Ultra-Berm Builder® Straight Wall Section (Part #8637)
- UPC 808416102802 Ultra-Berm Builder® Corner (Part #8638)
- UPC 808416102819 Ultra-Berm Builder® Wall End (Part #8639)
- UPC 808416086447 Ultra-Berm Builder Floor Sealant (Part #8644)
- UPC 808416086454 Ultra-Berm Builder Vinyl Adhesive (Part #8645)
- UPC 808416101201 Ultra-Berm Builder® Barrier Repair Material (Part #8669)
WARNING: Part #8644 can expose you to chemicals including 1-2-Benzenedicarboxylic acid - di-C8-10-branched alkyl esters - C9-rich which is known to the state of California to cause cancer. Part #8645 can expose you to chemicals including Toluene which is known to the state of California to cause reproductive toxicity. Part #8671-#8673 and Part #8634-#8639 can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.gov
