Storm drains on or around construction sites are susceptible to large quantities of dirt and sand. In those circumstances, a higher capacity catch basin insert may be the better solution.NOTE: Unless otherwise noted, all listed product measurements are L x W x H, outside dimensions, and for a single unit where quantity is more than one.
| Part # | Model | Dimensions in. (mm) | Weight Capacity UDL lbs. (kg) | Weight lbs. (kg) |
|---|---|---|---|---|
| 9341 | Reusable Model w/ 4 Overflow Ports | 24 x 24 x 36 (609.6 x 609.6 x 914.4) | 500 (226.8) | 1 (0.45) |
| 9843 | Reusable Model w/ 4 Overflow Ports | 30 x 30 x 36 (762 x 762 x 914.4) | 500 (226.8) | 2 (0.9) |
| 9340 | Reusable Model w/ 4 Overflow Ports | 36 x 24 x 36 (914.4 x 609.6 x 914.4) | 500 (226.8) | 1 (0.45) |
| 9342 | Reusable Model w/ 4 Overflow Ports | 48 x 24 x 36 (1219.2 x 609.6 x 914.4) | 500 (226.8) | 1 (0.45) |
| 9332 | Reusable Model, Curb-Style w/ 4 Overflow Ports | 24 x 24 x 36 (609.6 x 609.6 x 914.4) | 500 (226.8) | 2.5 (1.13) |
| 9330 | Reusable Model, Curb-Style w/ 4 Overflow Ports | 36 x 24 x 36 (914.4 x 609.6 x 914.4) | 500 (226.8) | 2.5 (1.13) |
| Part # | Model | Dimensions in. (mm) | Weight Capacity UDL lbs. (kg) | Weight lbs. (kg) |
|---|---|---|---|---|
| 9840 | Reusable Model w/ 8 Overflow Ports | 24 x 24 x 36 (609.6 x 609.6 x 914.4) | 500 (226.8) | 1 (0.45) |
| 9841 | Reusable Model w/ 8 Overflow Ports | 27 x 27 x 36 (685.8 x 685.8 x 914.4) | 500 (226.8) | 2 (0.91) |
| 9842 | Reusable Model w/ 8 Overflow Ports | 30 x 30 x 36 (762 x 762 x 914.4) | 500 (226.8) | 2 (0.91) |
| 9844 | Reusable Model w/ 8 Overflow Ports | 32 x 32 x 36 (812.8 x 812.8 x 914.4) | 500 (226.8) | 2 (0.91) |
| 9845 | Reusable Model w/ 8 Overflow Ports | 36 x 36 x 36 (914.4 x 914.4 x 914.4) | 500 (226.8) | 2 (0.91) |
| 9846 | Reusable Model w/ 8 Overflow Ports | 38 x 38 x 36 (965.2 x 965.2 x 914.4) | 500 (226.8) | 2 (0.91) |
| 9847 | Reusable Model, Curb-Style w/ 8 Overflow Ports | 18 x 30 x 36 (457.2 x 762 x 914.4) | 500 (226.8) | 1 (0.45) |
Custom sizes available. Minimum order required. Contact us for details.
By simply dropping a small tablet into each storm drain, you can increase the oil absorbing and removal effectiveness of your Ultra-Drain Guard. Ultra-Archaea are oil-eating microbes that will consume any hydrocarbons in the Ultra-Drain Guard as well as inside the catch basin. Click here for more information.
Because of its extraordinary capacity (up to 500 lbs), the reusable model is an excellent choice where the potential for sediment, sand, soil, and dirt is great and there is little or no concern for capturing hydrocarbons. For this reason, the Ultra-Drain Guard, Reusable Model, is often used on construction sites.
This will be dependent from catch basin to catch basin depending on the design, weight, and size of the grate, the fit of the grate and other factors. However, it can and has been done. For added security, rebar can be inserted into the removal flap pockets and left in place (these will be necessary during removal of the Ultra-Drain Guard).
When new, the flow rate for the Ultra-Drain Guard, Reusable Model is 695 gals/min/ft². For more info, please check out these specifications.

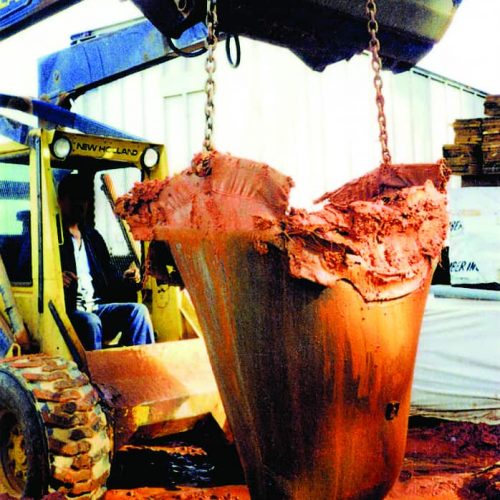

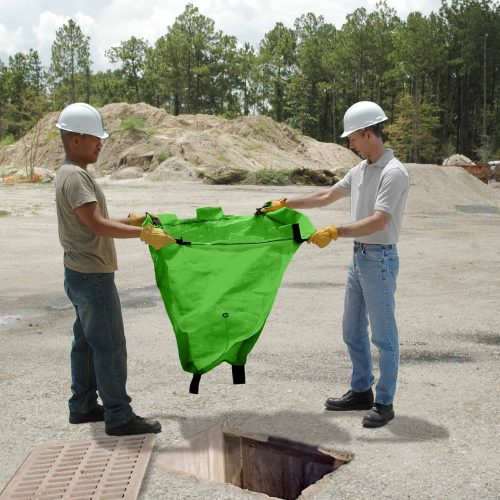

Once rebar has been inserted into the removal flap pockets, the unit can either be removed by hand (at least two people) or, for larger loads, a backhoe, forklift or other equipment should be used.
In order to be able to contain very large amounts of sand, silt, and sediment, it is necessary to use a polypropylene material to make the Ultra-Drain Guard, Reusable Model. While this is obviously a very strong, durable and heavy-duty material it does not have the oil-absorbing capabilities of the geotextile material that is used for most of our other drain guard models.
