Ultra-Drum Funnel®
Burp-Free Model
Protected by the industry’s strongest warranty – Five years against any material or workmanship defects. Learn more…
Built-in vent - no more splashing or "burping" when pouring liquids!

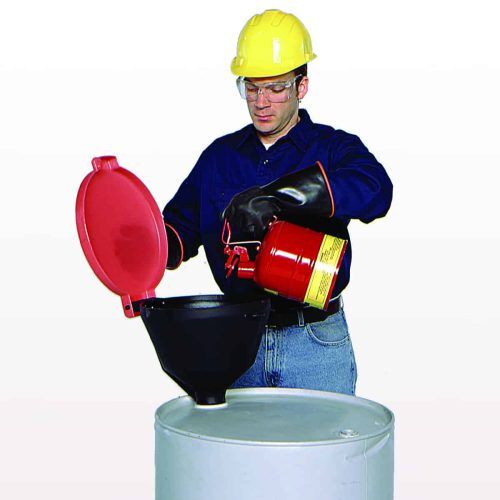

The Ultra-Funnel, Burp-Free Model is for use with closed-head or tight-head drums. It screws into the drum’s 2-inch bung and provides a large pouring target.
The built-in venting system allows liquids to be poured without any splashback or “burping”.
Product Highlights
- Threaded brass insert screws into 2" drum bung.
- All-polyethylene construction won't rust or corrode - provides excellent chemical resistance.
- Hinged, lockable lid prevents unauthorized access.
- Larger style provides bigger pouring area and easy access.
NOTE: Unless otherwise noted, all listed product measurements are L x W x H, outside dimensions, and for a single unit where quantity is more than one.
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 0651 | Standard | 13.4 x 13.4 x 11 (339.9 x 339.9 x 279.4) | 5 (2.3) |
| 0656 | Large | 22 x 22 x 11.5 (558.8 x 558.8 x 292.1) | 8 (3.6) |
Swipe to scroll table
FAQs
Resources & Docs
Compliance & Regs
Additional Info.
FAQs
Frequently Asked Questions
-
What kind of threads are used with the funnel?
The standard size funnel uses buttress threads and the large funnel uses NPT (National Pipe Thread).
-
Does this mean I don't have to vent through the 3/4" bung now?
Yes, that is correct. Because of the built-in vent in the funnel, no further venting is necessary.
-
How many can I get on a pallet? What's the other shipping information I should know?
We can ship up to (40) standard size burp-free funnels on a single, standard pallet. We can ship up to (20) large burp-free funnels on a single, standard pallet. Freight class is 250.
-
Is an adapter included to use the burp-free funnel with IBCs?
The Ultra-Drum Funnel, Burp-Free Model is designed for a 2″ NPT bung and does not come with any additional adapters. Adapters for IBC or other containers with different sized bungs or thread types will need to be obtained separately.
Resources & Docs
Compliance & Regs
This product may not address any specific regulations but if you have any questions, we’re here to help.
Additional Info.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416006513 Ultra-Burp-Free Funnel Standard (Part #0651)
- UPC 808416006568 Ultra-Burp-Free Funnel Large (Part #0656)
WARNING: Part #0651 and #0656 can expose you to chemicals including nickel which is known to the state of California to cause cancer. For more information, please visit www.P65Warnings.ca.gov
