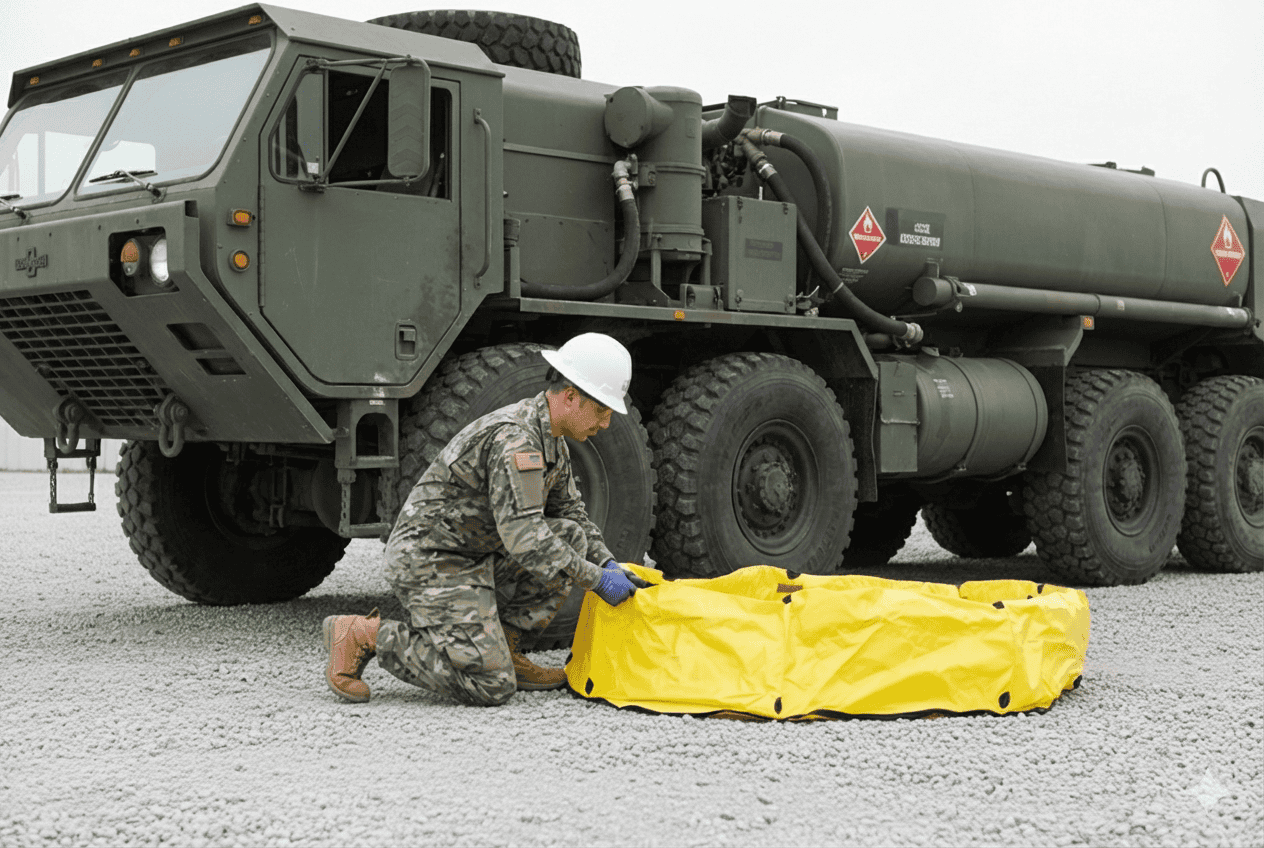

The Ultra-Pop Up Pool® is a compact, easy-to-use spill response product that can be used as a catch-all for many spill containment applications including leaking hydraulic lines, pipes, machinery, and packages. A foam ring around the edges raises the walls as the amount of liquid increases, making it easy to set up in emergencies.
NOTE: Unless otherwise noted, all listed product measurements are L x W x H, outside dimensions, and for a single unit where quantity is more than one.
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 8022 | Economy Model - 20 gal (76 L) | Wall Height 8, Top dia. 28, Bottom dia. 35 (204, 711, 889) | 3.0 (1.5) |
| 8068 | Economy Model - 66 gal (250 L) | Wall Height 12, Top dia. 42, Bottom dia. 53 (305, 1067, 1347) | 4.0 (2.0) |
| 8102 | Economy Model - 100 gal (379 L) | Wall Height 12, Top dia. 53, Bottom dia. 64½ (305, 1347, 1638) | 5.0 (2.5) |
| 8153 | Economy Model - 150 gal (568 L) | Wall Height 12, Top dia. 64, Bottom dia. 76 (305, 1626, 1930) | 6.0 (3.0) |
| 8160 | Economy Model - 250 gal (946 L) | Wall Height 12, Top dia. 73, Bottom dia. 85 (305, 1855, 2159) | 17.0 (7.5) |
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 8020 | Sprung Steel Model - 20 gal (76 L) | Wall Height 8, Top dia. 28, Bottom dia. 35 (204, 711, 889) | 3.0 (1.5) |
| 8066 | Sprung Steel Model - 66 gal (250 L) | Wall Height 12, Top dia. 42, Bottom dia. 53 (305, 1067, 1347) | 5.0 (2.5) |
| 8100 | Sprung Steel Model - 100 gal (379 L) | Wall Height 12, Top dia. 53, Bottom dia. 64½ (305, 1347, 1638) | 6.0 (3.0) |
| 8150 | Sprung Steel Model - 150 gal (568 L) | Wall Height 12, Top dia. 64, Bottom dia. 76 (305, 1626, 1930) | 7.0 (3.0) |
* 250-gallon size is not available in sprung steel model.
A carrying case is included with the sprung steel model pop up pools and is optional with the economy model.
Yes, all Ultra-Pop Up Pools are compatible with diesel fuel. You can find out more compatibility with our compatibility guide.
The sidewalls of the Ultra-Pop Up Pool stay down until they are needed. When a spill occurs, the foam ring in the top perimeter of the pool will float up with the liquid level, raising the sidewalls with it.
There are no supports or structures that could be damaged if driven over so it is possible to drive over an Ultra-Pop Up Pool. However, the product is not designed for that type of application and will likely not stand up to it for long. If a drive-in/out capability is required, an Ultra-Containment Berm would likely be a better solution.
WARNING: Part #8020, #8022, #8066, #8068, #8100, #8102, #8150, #8153, and #8160can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.govWorld-Class Products • Exceptional Customer Experience • Innovative Problem Solving
