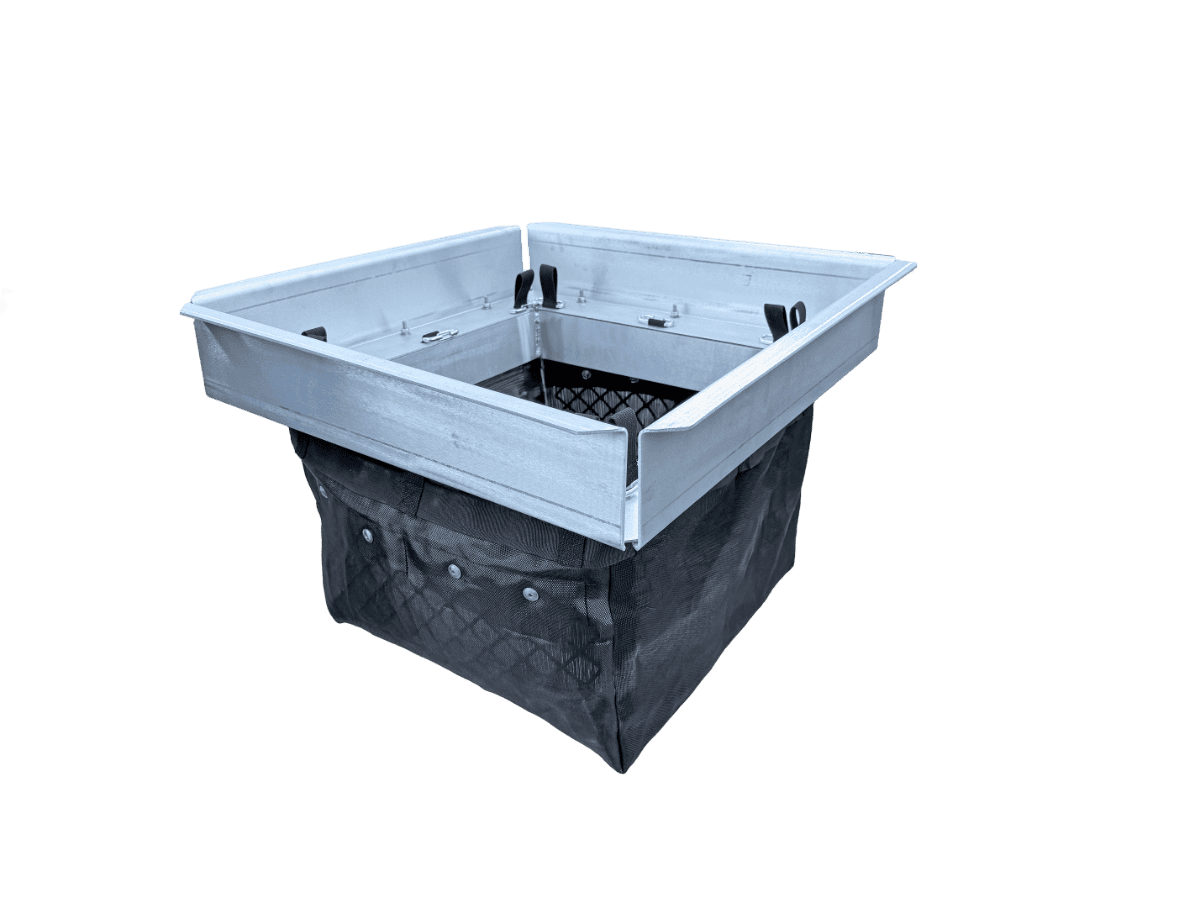

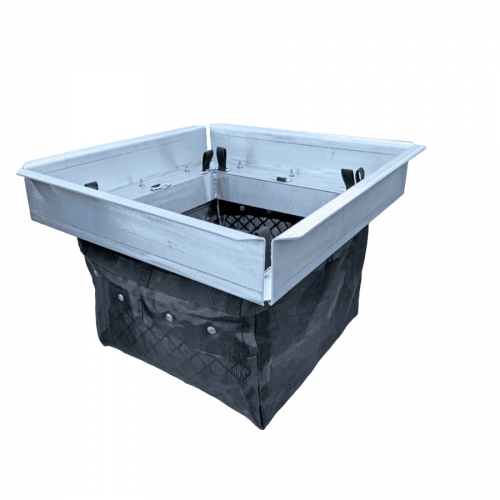

Heavy-duty, adjustable catch basin filter captures hydrocarbons, plastic pellets and other contaminants
The Ultra-Storm Guard Plus delivers reliable stormwater management in a simple, efficient design. Built for long-lasting performance and easy installation, it combines durability with flexibility to handle a wide range of site conditions.
Product Highlights
- Constructed with a durable 13-gauge stainless steel frame

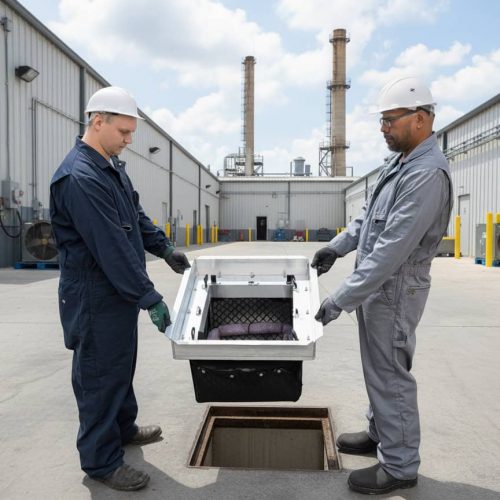

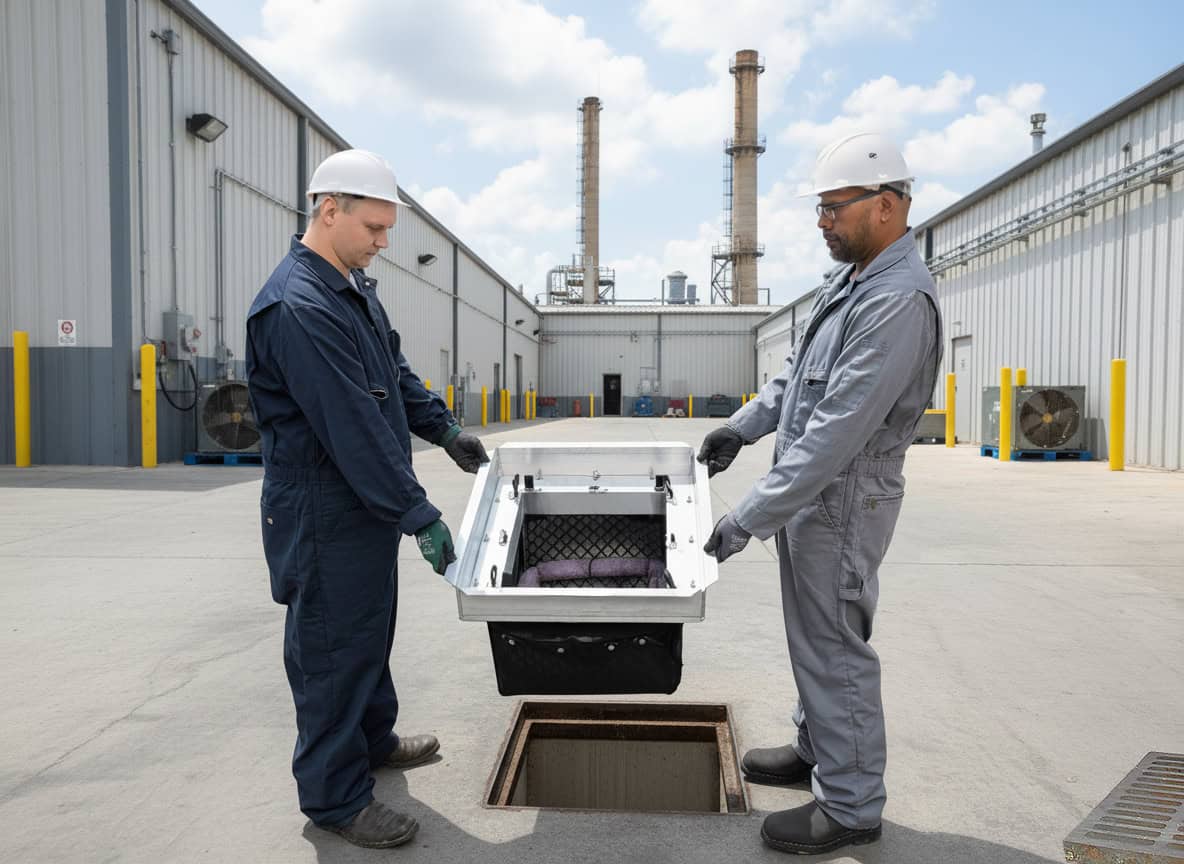

- Quick and easy installation - simply lift the storm grate, place the Storm Guard Plus into the catch basin, and replace the grate.
- Adjustable aluminum frame (2” adjustment range) and expandable flanges to fit both standard and irregular catch basin openings.
- Lightweight, flexible polypropylene basket maximizes catch basin space, reducing maintenance frequency.
- Replaceable filter bag with a high treatment flow rate of 145 GPM/ft² captures fine sediments and solids from stormwater runoff. Great for plastic pellet containment.
- Protected bypass keeps sediments and trash safely stored, even during extreme rain events.
- Easy maintenance by hand or vacuum truck, minimizing downtime and labor costs.
- Integrated Ultra-Filter Texv oil boom ideal for sites such as parking lots, maintenance yards, and transfer stations where hydrocarbons are present in the stormwater (easily removed if not needed).
- Functions as an effective prefilter to protect downstream stormwater BMPs including detention ponds and infiltration areas.
- Designed for long-term reliability with fewer components for simplified maintenance and lower total cost of ownership
NOTE: Unless otherwise noted, all listed product measurements are L x W x H, outside dimensions, and for a single unit where quantity is more than one.
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 9889 | 2'x2' | 24 x 24 x 30 (610 x 610 x 762) | 30.0 (13.6) |
| 9890 | Replacement Sack | 24 x 24 x 28 (610 x 610 x 711) | 8 (3.6) |
| 9891 | Custom Size | Custom Size | Varies |
| 9892 | Replacement Sack | Custom Size | Varies |
Swipe to scroll table
FAQs
Resources & Docs
Compliance & Regs
Additional Info.
FAQs
There aren’t many questions regarding this product right now, but we’re here to help if you have any!
Resources & Docs
More Info / Downloads
Compliance & Regs
This product may not address any specific regulations but if you have any questions, we’re here to help.
Additional Info.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 80841610339 Ultra-Storm Guard Plus 2'x2' (Part #9889)
- UPC 80841609890 Ultra-Storm Guard Plus Replacement Sack (Part #9890)
- UPC 80841609891 Ultra-Storm Guard Plus Custom Size (Part #9891)
- UPC 808416098921 Ultra-Storm Guard Plus Replacement Sack (Part #9892)
