Pop up spill containment pools capture leaks and spills to minimize environmental damage and related clean-up costs

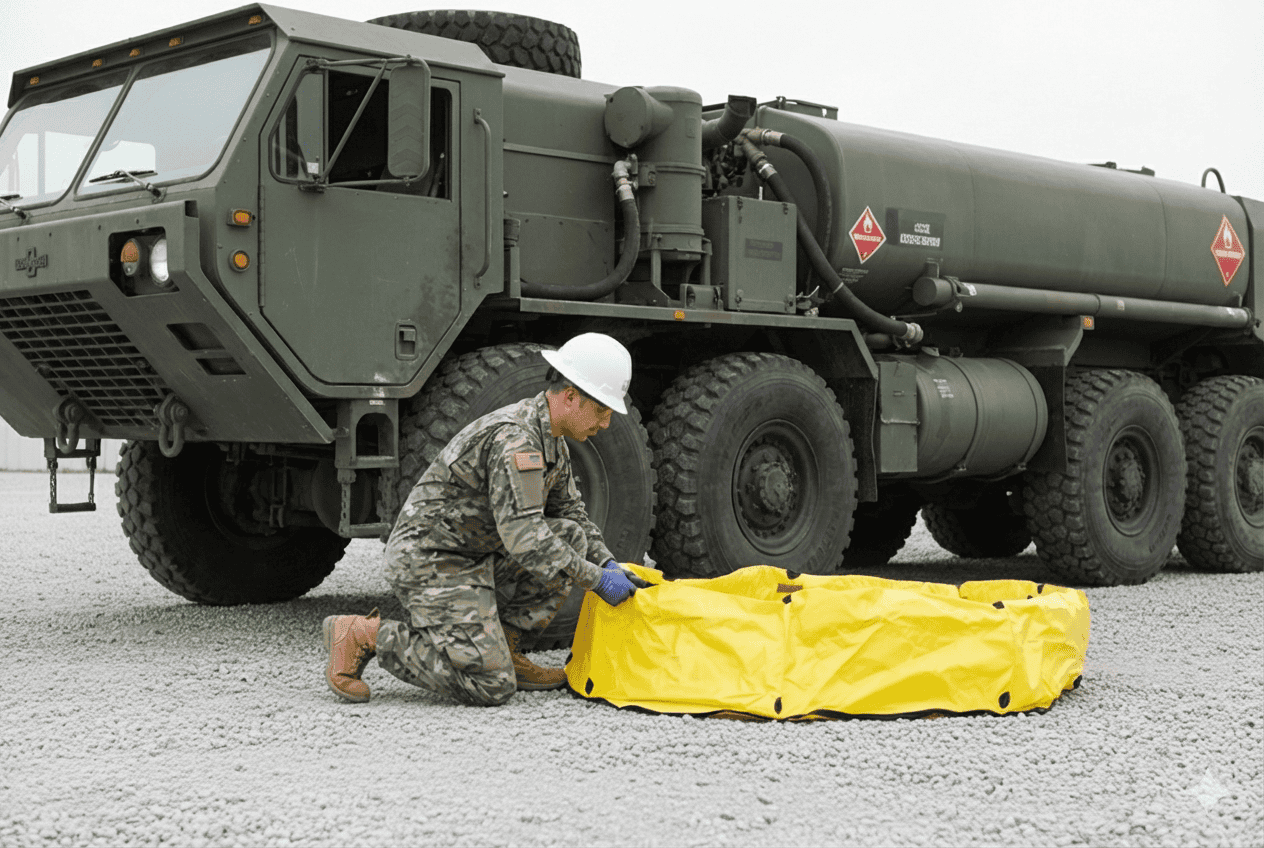

The Ultra-Pop Up Pool® is a compact, easy-to-use spill response product that can be used as a catch-all for many spill containment applications including leaking hydraulic lines, pipes, machinery, and packages. A foam ring around the edges raises the walls as the amount of liquid increases, making it easy to set up in emergencies.
Product Highlights
- Easy to use - Simply remove from packaging and shake quickly to expand.
- Excellent chemical resistance to diesel fuel, antifreeze, acids, caustics and corrosives.
- Available in 250, 150, 100, 66 and 20 gallon sizes.
- Available in sprung steel* or economy models.
- Compact to fit inside spill kits.
- Handles on the steel sprung model storage bags can be used to hang on a wall near shipping/receiving docks.
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 8022 | Economy Model - 20 gal (76 L) | Wall Height 8, Top dia. 28, Bottom dia. 35 (204, 711, 889) | 3.0 (1.5) |
| 8068 | Economy Model - 66 gal (250 L) | Wall Height 12, Top dia. 42, Bottom dia. 53 (305, 1067, 1347) | 4.0 (2.0) |
| 8102 | Economy Model - 100 gal (379 L) | Wall Height 12, Top dia. 53, Bottom dia. 64½ (305, 1347, 1638) | 5.0 (2.5) |
| 8153 | Economy Model - 150 gal (568 L) | Wall Height 12, Top dia. 64, Bottom dia. 76 (305, 1626, 1930) | 6.0 (3.0) |
| 8160 | Economy Model - 250 gal (946 L) | Wall Height 12, Top dia. 73, Bottom dia. 85 (305, 1855, 2159) | 17.0 (7.5) |
Swipe to scroll table
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 8020 | Sprung Steel Model - 20 gal (76 L) | Wall Height 8, Top dia. 28, Bottom dia. 35 (204, 711, 889) | 3.0 (1.5) |
| 8066 | Sprung Steel Model - 66 gal (250 L) | Wall Height 12, Top dia. 42, Bottom dia. 53 (305, 1067, 1347) | 5.0 (2.5) |
| 8100 | Sprung Steel Model - 100 gal (379 L) | Wall Height 12, Top dia. 53, Bottom dia. 64½ (305, 1347, 1638) | 6.0 (3.0) |
| 8150 | Sprung Steel Model - 150 gal (568 L) | Wall Height 12, Top dia. 64, Bottom dia. 76 (305, 1626, 1930) | 7.0 (3.0) |
Swipe to scroll table
* 250-gallon size is not available in sprung steel model.
FAQs
Resources & Docs
Compliance & Regs
Additional Info.
FAQs
Frequently Asked Questions
-
What's the difference between the economy model and the sprung steel model?
- Cost: Economy, as you might guess, is less expensive. Because the sprung steel ring is not used in the economy model we are able to produce it at a lower cost.
- Set-up: Sprung steel pops open as soon as it is removed from its included case. Economy needs to be unrolled and/or shaken open – a very quick process but slightly slower than the sprung steel model
- Carrying case: Included with the sprung steel model. Optional with the economy model.
- Folded size: Economy is considerably smaller because it does not utilize the sprung steel ring.
- Larger sizes: The economy model pop up pool is the only model with larger, 250 and 400-gallon sizes available.
-
Do Ultra-Pop Up Pools come with a case?
A carrying case is included with the sprung steel model pop up pools and is optional with the economy model.
-
Can I use it with diesel fuel?
Yes, all Ultra-Pop Up Pools are compatible with diesel fuel. You can find out more compatibility with our compatibility guide.
-
Does the wall stand up by itself?
The sidewalls of the Ultra-Pop Up Pool stay down until they are needed. When a spill occurs, the foam ring in the top perimeter of the pool will float up with the liquid level, raising the sidewalls with it.
-
Can I drive over it?
There are no supports or structures that could be damaged if driven over so it is possible to drive over an Ultra-Pop Up Pool. However, the product is not designed for that type of application and will likely not stand up to it for long. If a drive-in/out capability is required, an Ultra-Containment Berm would likely be a better solution.
Resources & Docs
Compliance & Regs
Helps Comply with These Rules & Regulations
- EPA Hazardous Waste Discharges 40 CFR 263.30
Additional Info.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC Ultra-Pop Up Pool Economy Model - 20 gal (76 L) (Part #8022)
- UPC Ultra-Pop Up Pool Economy Model - 66 gal (250 L) (Part #8068)
- UPC Ultra-Pop Up Pool Economy Model - 100 gal (379 L) (Part #8102)
- UPC Ultra-Pop Up Pool Economy Model - 150 gal (568 L) (Part #8153)
- UPC 808416081602 Ultra-Pop Up Pool Economy Model - 250 gal (946 L) (Part #8160)
- UPC Ultra-Pop Up Pool Sprung Steel Model - 20 gal (76 L) (Part #8020)
- UPC Ultra-Pop Up Pool Sprung Steel Model - 66 gal (250 L) (Part #8066)
- UPC Ultra-Pop Up Pool Sprung Steel Model - 100 gal (379 L) (Part #8100)
- UPC Ultra-Pop Up Pool Sprung Steel Model - 150 gal (568 L) (Part #8150)
WARNING: Part #8020, #8022, #8066, #8068, #8100, #8102, #8150, #8153, and #8160can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.gov
