Lightweight and economical L-bracket berm design provides secure spill containment

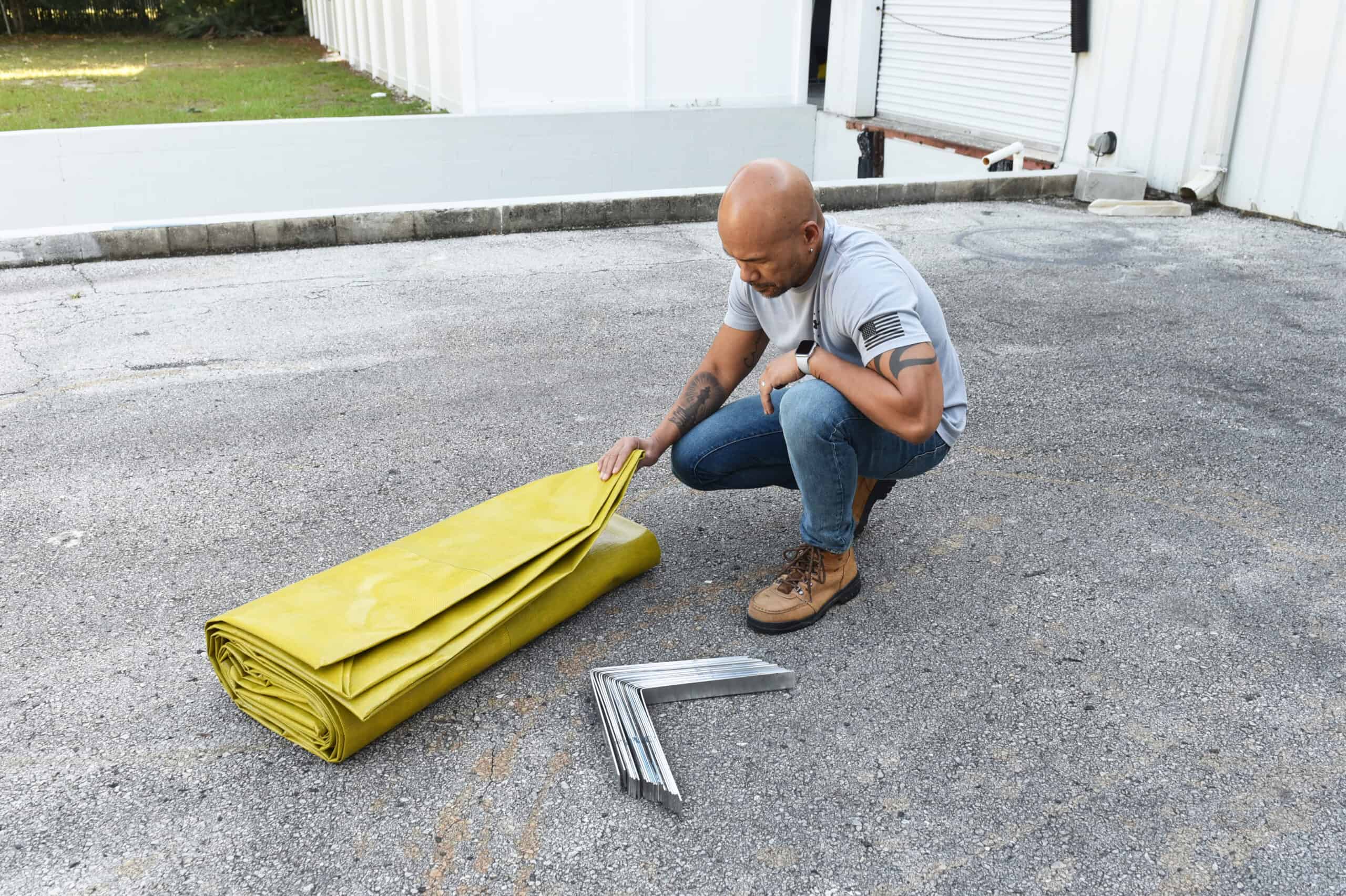

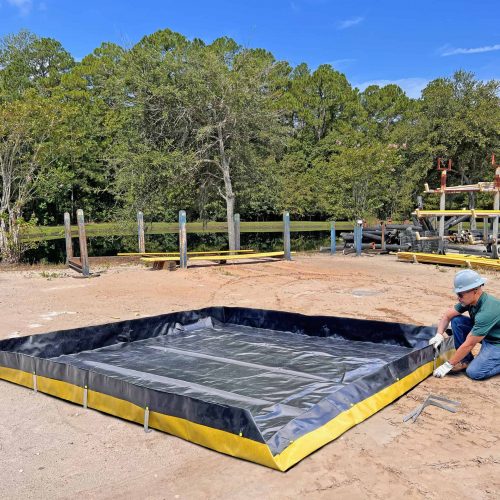

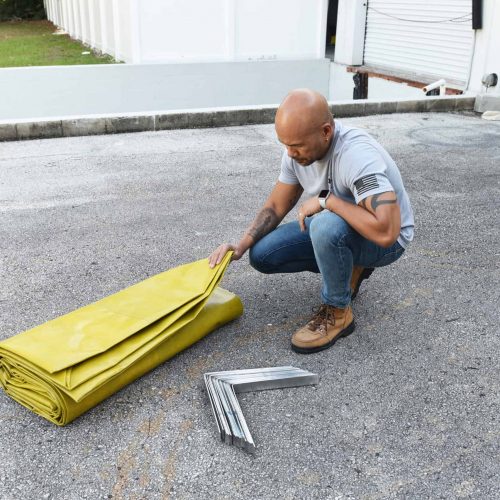

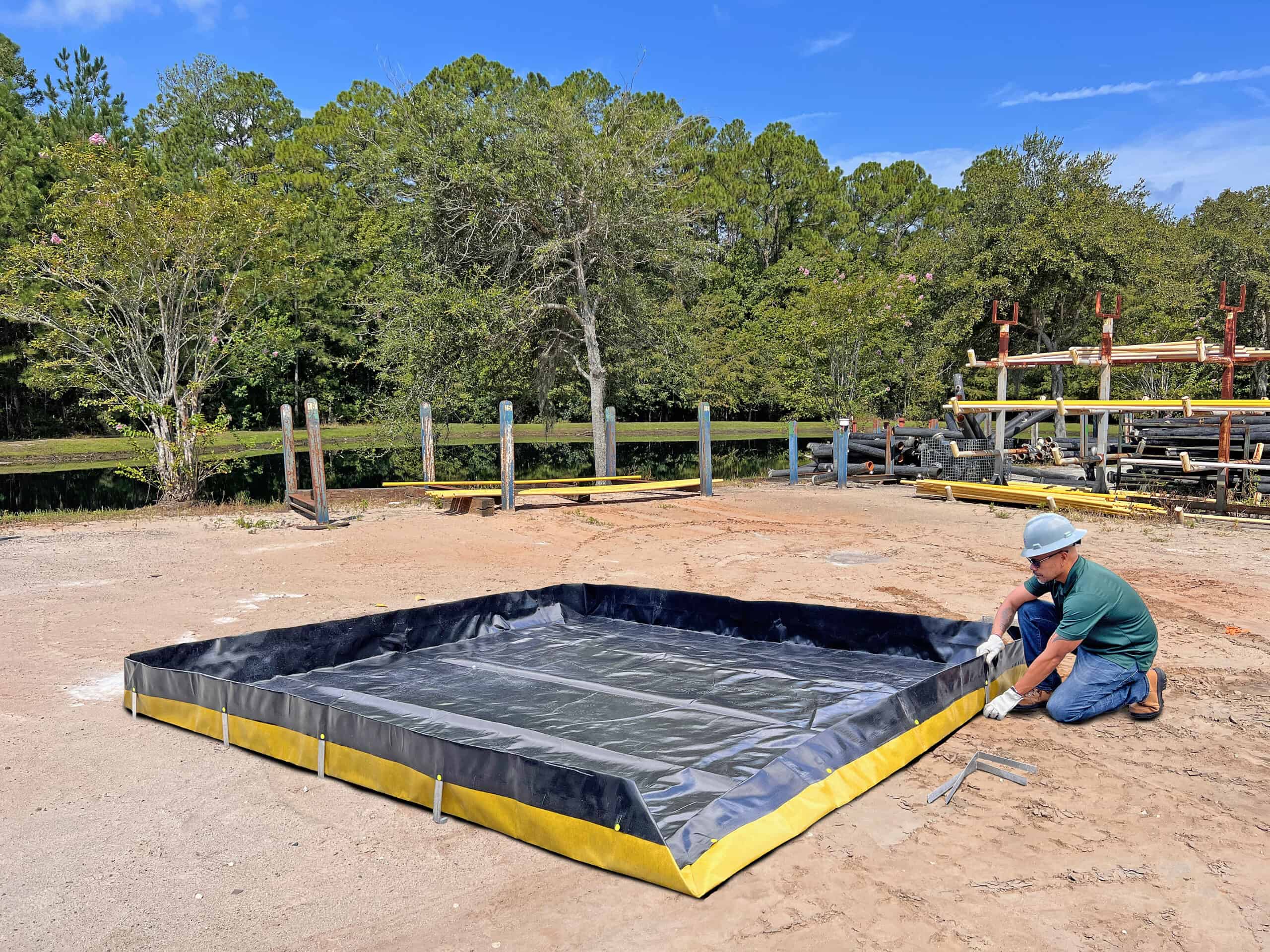

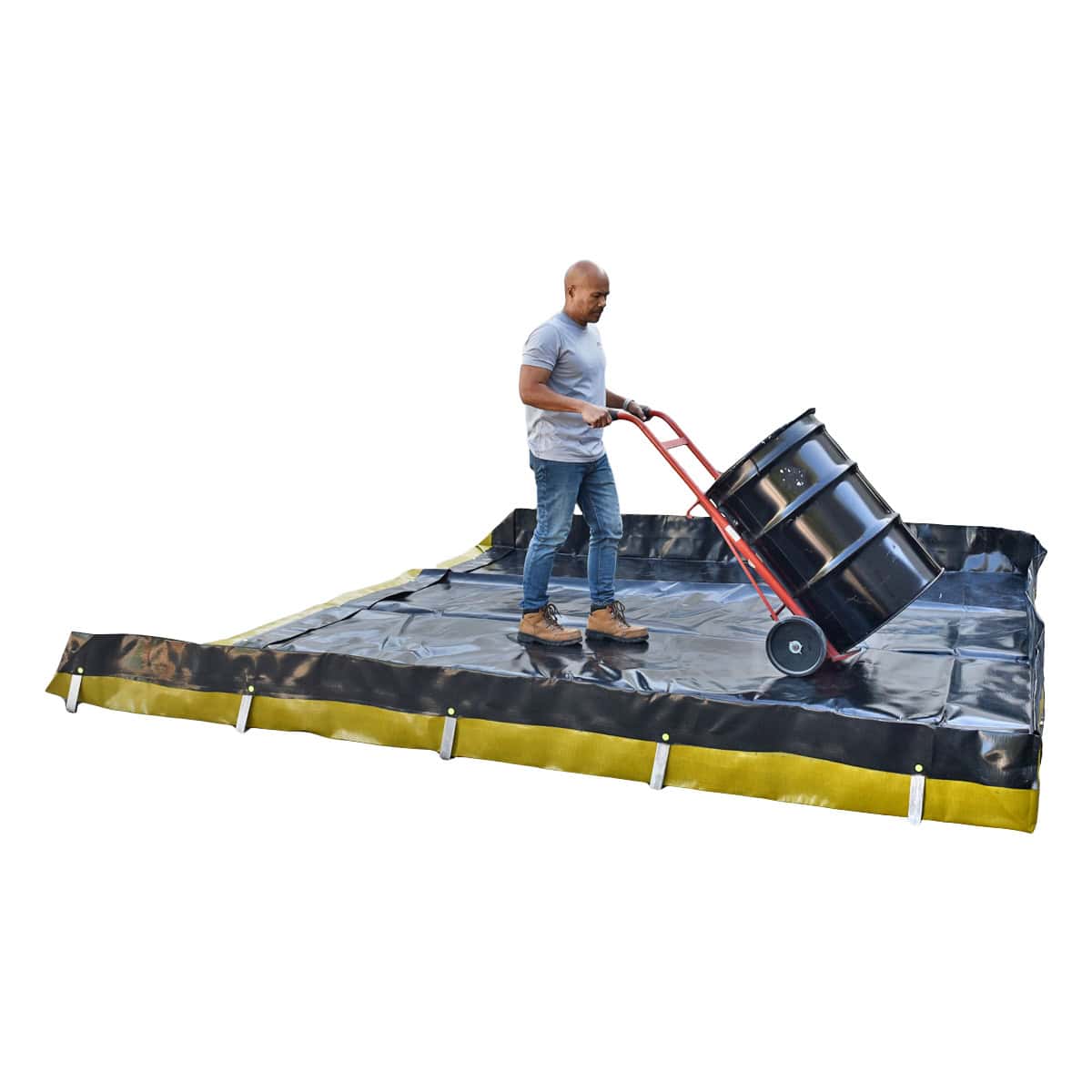

Just like the standard Economy Model Ultra-Containment Berm, this PE model uses a reinforced polyethylene (RPE) 30-mil liner for maximum durability. The L-shaped wire brackets provide sturdy sidewalls, yet its frameless design makes it quick to deploy inside or outside.

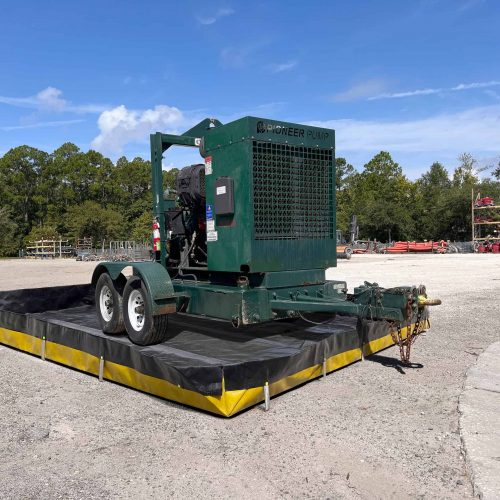

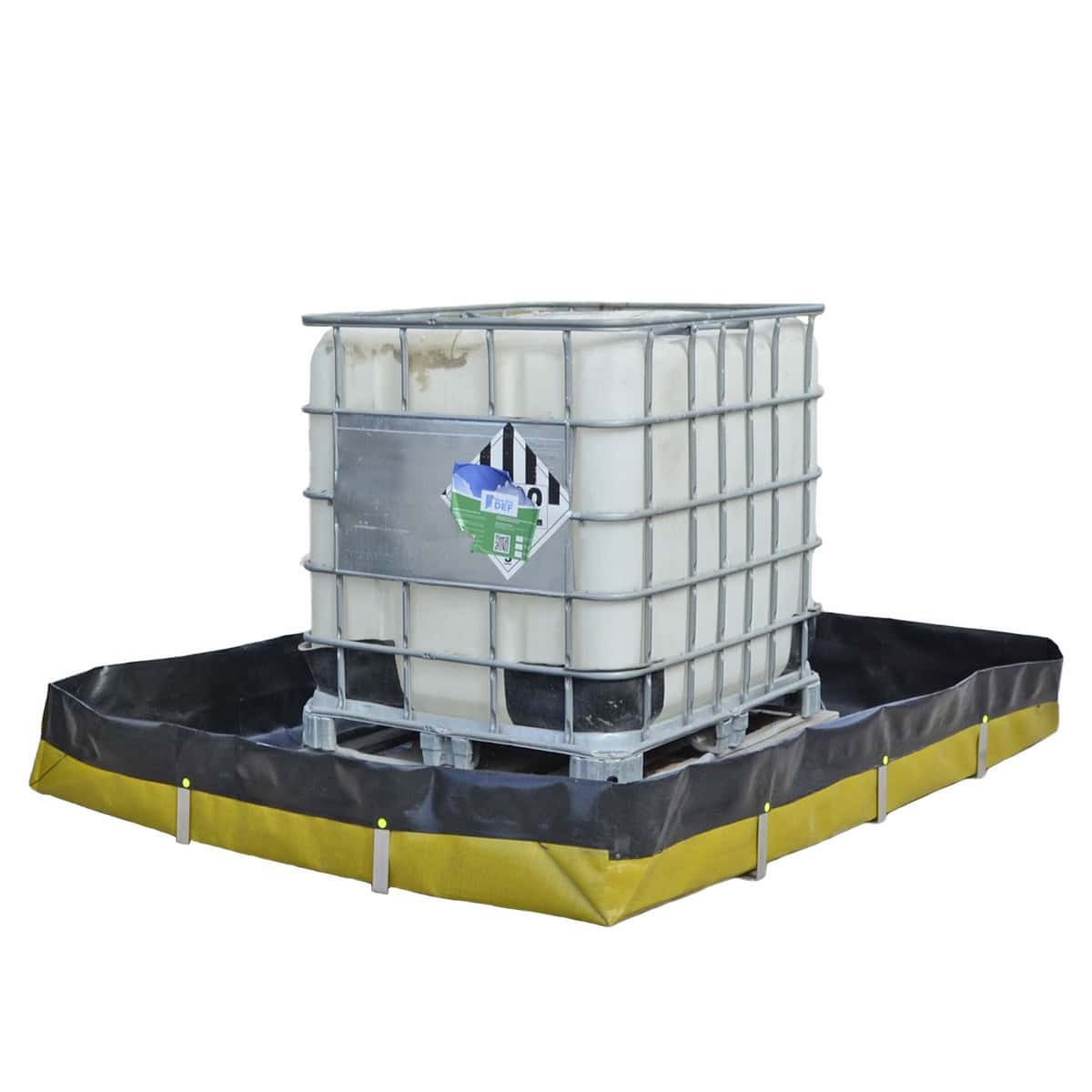

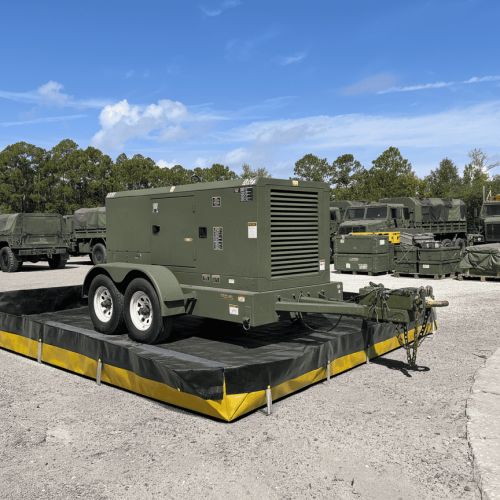

Available in many sizes, including custom sizes, the Ultra-Containment Berm – PE Model is ideal for either temporary or long-term storage and spill containment for anything from a single IBC to a large frac tank.
Product Highlights

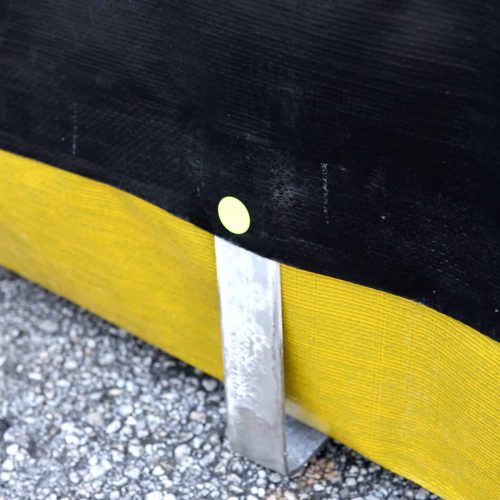

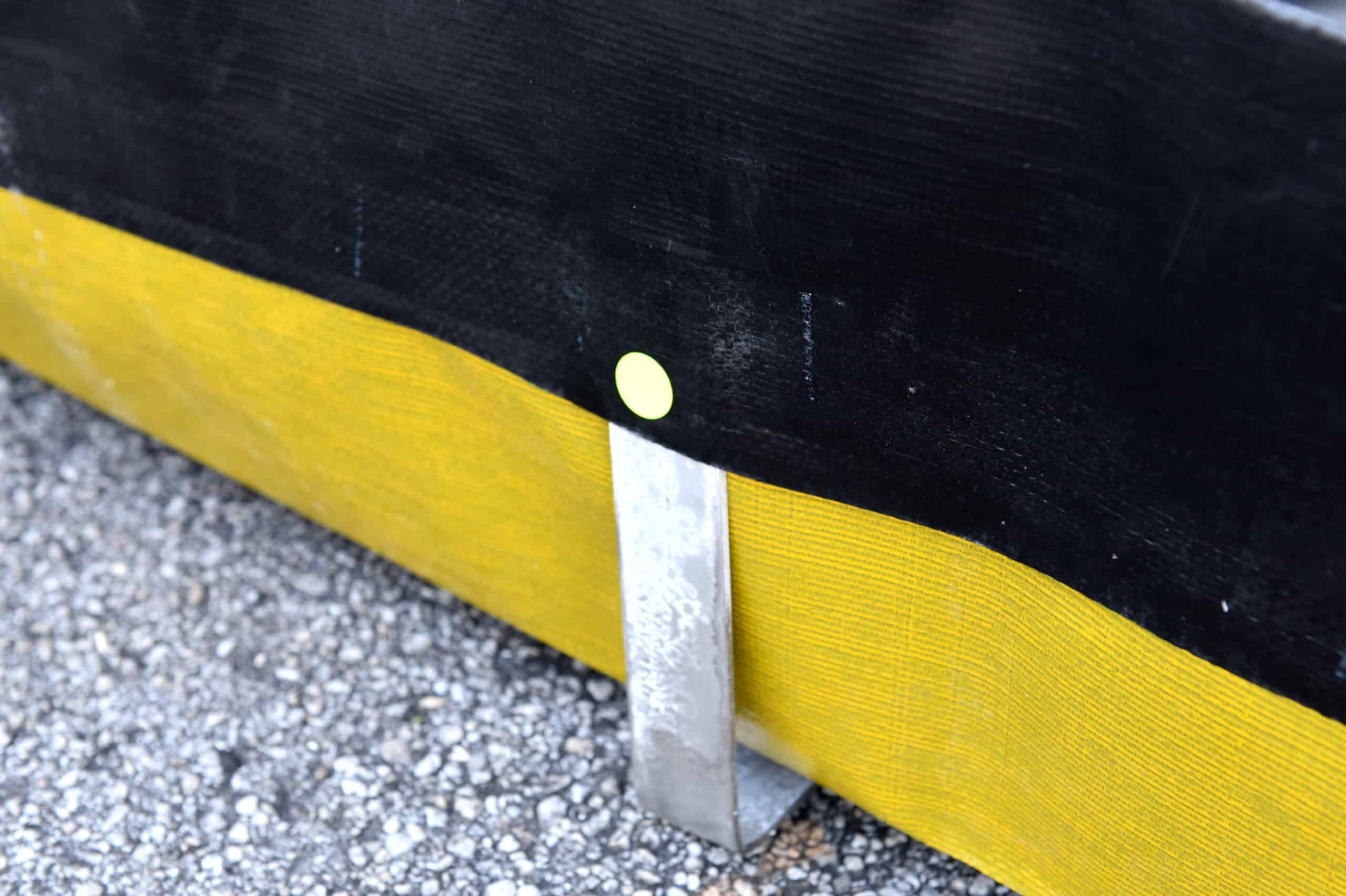

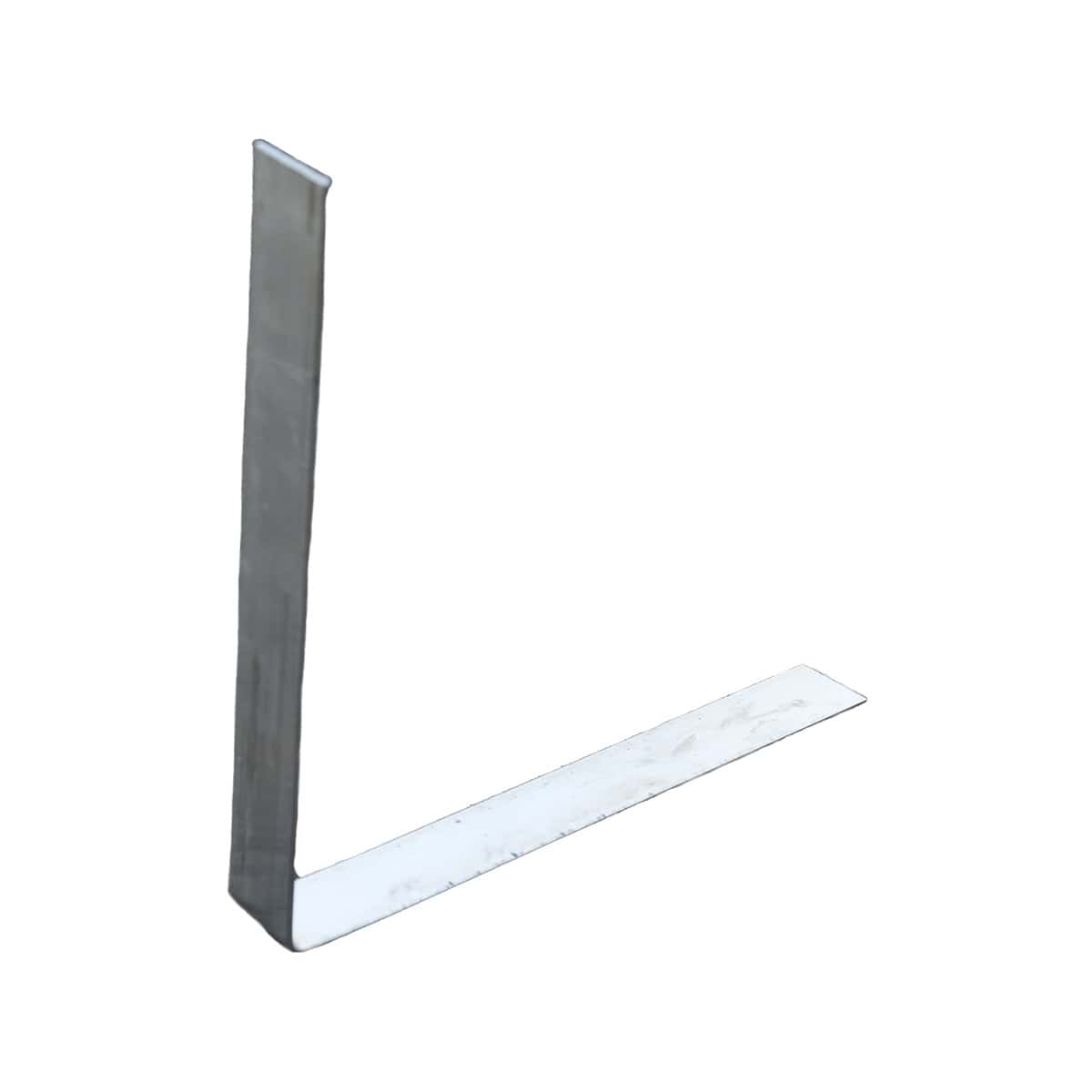

- L-shaped wire brackets provide sturdy sidewall support.
- 12” sidewall contains spills in drilling and fracking locations.
- Two-color (black/yellow) material makes tears and punctures easier to identify - simply look for the opposite color.
- No frames, components or excess material outside of sidewalls — excellent for use as spill containment area inside of storage sheds and other buildings or structures where floor space is a premium.
- Economical spill containment for frac tanks and other large containers.
- Custom sizes available.
NOTE: Unless otherwise noted, all listed product measurements are L x W x H, outside dimensions, and for a single unit where quantity is more than one.
| Part # | Dimensions ft. (m) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| 8240 | 6 x 6 x 1 (1.8 x 1.8 x 0.3) | 269 (1018.28) | 9.0 (4.1) |
| 8241 | 10 x 10 x 1 (3 x 3 x 0.3) | 748 (2831.49) | 23.0 (10.4 |
| 8242 | 12 x 12 x 1 (3.7 x 3.7 x 0.3) | 1077 (4076.88) | 29.0 (13.2) |
| 8243 | 25 x 12 x 1 (7.6 x 3.7 x 0.3) | 2244 (8494.464) | 49.0 (22.2) |
| 8244 | 50 x 10 x 1 (15.2 x 3 x 0.3) | 3740 (14157.44) | 84.0 (38.1 |
| 8245 | 50 x 12 x 1 (15.2 x 3.7 x 0.3) | 4488 (16989) | 88.0 (40.0) |
| 2858 | 4 x 4 x 1 (1.2 x 1.2 x 0.3) | 119 (450.46) | 8 (3.63) |
| 2859 | 6 x 4 x 1 (1.8 x 1.2 x 0.3) | 179 (677.59) | 10 (4.54) |
| 2860 | 8 x 6 x 1 (2.4 x 1.8 x 0.3) | 359 (1359) | 13 (5.9) |
| 2861 | 8 x 8 x 1 (2.4 x 2.4 x 0.3) | 478 (1809.43) | 17 (7.71) |
| 2862 | 20 x 10 x 1 (6.1 x 3 x 0.3) | 1496 (5663) | 50 (22.68) |
| 2863 | 30 x 10 x 1 (9.1 x 3 x 0.3) | 2244 (8494.46) | 53 (24.04) |
| 2864 | 40 x 10 x 1 (12.2 x 3 x 0.3) | 2992 (11326) | 67 (30.39) |
| 2865 | 20 x 12 x 1 (6.1 x 3.7 x 0.3) | 1795 (6794.81) | 43 (19.50) |
| 2866 | 30 x 12 x 1 (9.1 x 3.7 x 0.3) | 2692 (10190.33) | 59 (26.76) |
| 2867 | 40 x 12 x 1 (12.2 x 3.7 x 0.3) | 3590 (13589.63) | 74 (33.57) |
| 2868 | 60 x 12 x 1 (18.3 x 3.7 x 0.3) | 5385 (20384.44) | 105 (47.63) |
| 2869 | 50 x 15 x 1 (15.2 x 4.6 x 0.3) | 5610 (21236.16) | 132 (59.87) |
| 2870 | 60 x 15 x 1 (18.3 x 4.6 x 0.3) | 6732 (25483.39) | 151 (68.49) |
Swipe to scroll table
| Part # | Model | Product Image | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|---|
| 8298 | PE Repair Tape 4" |  | 600 x 4 x 6 (15240 x 101.6 x 152.4) | 3 (1.4) |
| 8299 | PE Repair Tape 6" | | 600 x 6 x 6 (15240 x 152.4 x 152.4) | 6 (2.72) |
Swipe to scroll table
Need help determining berm size? Check out our secondary containment calculator.
FAQs
Resources & Docs
Compliance & Regs
Additional Info.
FAQs
Frequently Asked Questions
-
What is the operating temperature range for the Ultra-Containment Berms?
PVC: Max 150°F, Min: -20°F
Copolymer-2000: Max 160°F, Min: -25°F -
What if I need to use the Ultra-Containment Berm with a chemical that is not listed in the compatibility guide?
If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.
-
Can custom sized Ultra-Containment Berms be ordered?
Yes, we can make containment berms in custom sizes in virtually any length and width.
-
What about custom heights?
Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.
-
What freight class do the Ultra-Containment Berms ship under?
Ultra-Containment Berms ship from our factory in N. Augusta, SC 29860 at class 125.
-
What is included in the repair kit and how does it work?
The repair kit is simply an 11” x 36” piece of matching material and instructions on how to apply it to the berm. The only other item required is an industrial heat gun.
-
What is the optional ground tarp for?
The ground tarp provides added protection from punctures or damage from beneath the Ultra-Containment Berm. Standard procedure is to sweep the area of any rocks or debris, then place the ground tarp down followed by the containment berm.
-
How do I know what size ground tarp to order?
For smaller standard sized berms, the 11′ x 11′ ground tarp is recommended (Part# 8311). For larger berms, the general rule of thumb is to add 4′ to both the length and width dimensions of the berm. (e.g. a 16′ x 64′ ground tarp would be used for a 12′ x 60′ containment berm.)
-
What are the track belts for?
Track belts are strips of very heavy-duty material (Reinforced PVC) that lay down inside of the berm. They take the wear and tear from tires of the vehicles that are driving in and out of the berms. Thereby extending the life of the product.
Resources & Docs
Compliance & Regs
Helps Comply with These Rules & Regulations
- EPA Container Storage Regulation 40 CFR 264.175
- ADA Accessibility Guidelines for Buildings and Facilities (ADAAG)
Additional Info.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416101829 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #8240)
- UPC 808416101836 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #8241)
- UPC 808416101843 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #8242)
- UPC 808416101850 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #8243)
- UPC 808416101867 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #8244)
- UPC 808416101874 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #8245)
- UPC 808416102482 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2858)
- UPC 808416102499 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2859)
- UPC 808416102505 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2860)
- UPC 808416102512 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2861)
- UPC 808416102529 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2862)
- UPC 808416102536 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2863)
- UPC 808416102543 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2864)
- UPC 808416102550 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2865)
- UPC 808416102567 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2866)
- UPC 808416102574 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2867)
- UPC 808416102581 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2868)
- UPC 808416102598 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2869)
- UPC 808416102604 Ultra-Containment Berm® Economy Model - Reinforced Polyethylene (RPE) - 30 Mil (Part #2870)
- UPC 808416102468 Ultra-Containment Berm® PE Repair Tape 4" (Part #8298)
- UPC 808416102475 Ultra-Containment Berm® PE Repair Tape 6" (Part #8299)
WARNING: All part numbers on this page can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.gov
