Ultra-Containment Wall® M2
Protected by the industry’s strongest warranty – Five years against any material or workmanship defects. Learn more…
Modular, hard-walled system provides long-term, high-capacity spill containment

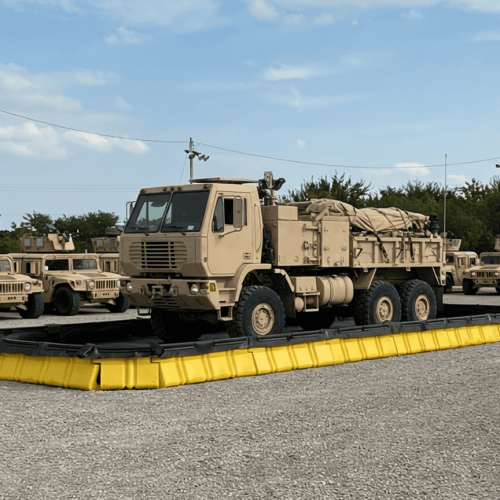

The Ultra-Containment Wall M2 is a containment wall system with modular straight and corner sections that can easily be assembled to form almost any size or shape spill containment area. Available with one-foot, two-foot, or three-foot high walls, a system can be built to contain very large spills from very large equipment.
Unlike some containment systems, the Ultra-Containment Wall M2 is not secured to the substrate so it is perfect use in parking lots, sand, rocky soil, muddy soil, frozen soil, or on concrete areas.
Complete kits are also available with containment capacities from ~6200 to ~18,600 gallons.
Product Highlights
- Modular wall sections and corners can be easily assembled to form almost any size/shape spill containment area needed.
- Heavy-duty, 30 mil, textured polyethylene liner provides rugged, impermeable barrier to capture leaks and spills.
- Creates large, semi-permanent containment areas. Provides much more gallon capacity than shorter walled containment systems.
- Versatile system can be easily disassembled for reuse at future sites.
- Meets SPCC, EPA Container Storage Regulation 40 CFR 264.175
NOTE: Unless otherwise noted, all listed product measurements are L x W x H, outside dimensions, and for a single unit where quantity is more than one.
| Part # | Model | Product Image | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|---|
| 8896 | Straight Section |  | 81.25 x 18 x 12 (2063.8 x 457.2 x 304.8 - Assembled | 34 (15.4) |
| 8897 | Corner Section |  | 36.8 x 36.8 x 12 (933.5 x 933.5 x 304.8) | 12 (5.4) |
| 8880 | Straight Section |  | 81.25 x 24 x 24 (2063.8 x 609.6 x 609.6) - Assembled | 65 (29.5) |
| 8881 | Corner Section |  | 36.8 x 19 x 24 (933.5 x 483.6 x 609.6) | 19 (8.6) |
| 8883 | Straight Section | | 81.25 x 24 x 36 (2063.8 x 609.6 x 914.4) - Assembled | 76 (34.5) |
| 8884 | Corner Section | | 36.8 x 19 x 36 (933.5 x 483.6 x 914.4) | 25 (11.3) |
| 8770 | 30 ml Textured Polyethylene Liner |  | Varies | 0.5 (.2) |
Swipe to scroll table
| Part # | Quantity | Dimensions ft. (m) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|---|
| 8898 | 20-Straight, 4-Corners | 15 x 55.7 x 1 (4.6 x 16.8 x 0.3) | 6211 (23511.2) | 728 (330) |
| 8882 | 20-Straight, 4-Corners | 15 x 55.7 x 2 (4.6 x 17 x 0.6) | 12421 (47018.6) | 1376 (624) |
| 8885 | 20-Straight, 4-Corners | 15 x 55.7 x 3 (4.6 x 17 x 0.9) | 18632 (70529.8) | 3007.5 (1364.2) |
Swipe to scroll table
* Liner not included.
** Five-year warranty does not apply to liners.
FAQs
Resources & Docs
Compliance & Regs
Additional Info.
FAQs
There aren’t many questions regarding this product right now, but we’re here to help if you have any!
Resources & Docs
More Info / Downloads
Compliance & Regs
Helps Comply with These Rules & Regulations
- Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112
- EPA Container Storage Regulation 40 CFR 264.175
Additional Info.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC TBD Ultra-Containment Wall®M2 Straight Section (Part #8896)
- UPC TBD Ultra-Containment Wall®M2 Corner Section (Part #8897)
- UPC TBD Ultra-Containment Wall®M2 Straight Section (Part #8880)
- UPC TBD Ultra-Containment Wall®M2 Corner Section (Part #8881)
- UPC TBD Ultra-Containment Wall®M2 Straight Section (Part #8883)
- UPC TBD Ultra-Containment Wall®M2 Corner Section (Part #8884)
- UPC 808416087703 Ultra-Containment Wall 30 ml Textured Polyethylene Liner (Part #8770)
- UPC TBD Ultra-Containment Wall®M2 Complete System* (Part #8898)
- UPC TBD Ultra-Containment Wall®M2 Complete System* (Part #8882)
- UPC TBD Ultra-Containment Wall®M2 Complete System* (Part #8885)
