Ultra-Containment Berm®
Mini Foam Wall Model (Duck Pond)
Quick and convenient spill containment for vehicles, equipment and containers
Spill containment is oftentimes about capturing the really large, catastrophic, environment-altering spills. And many of our products are designed to capture those kinds of spills. But the nuisance leaks and drips can cause problems of their own. Even just a few gallons spilled in a sensitive area could cause major problems. Even if it’s a small leak that results in an hour lost in clean-up, that hour is much better spent elsewhere.

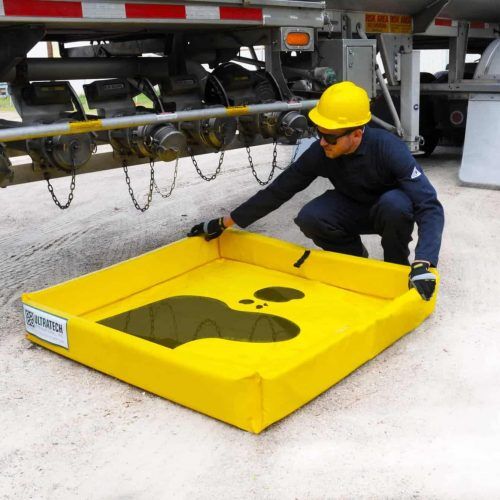

The Ultra-Containment Berm, Mini Foam Wall Model, also known as duck ponds are designed for quick response to smaller leaks, drips, and spills. Their compact size and foldability make them easy to store and transport but they also have a fair amount of capacity (up to 75 gallons) to capture spilled or leaked fluids.
Product Highlights
- Foldable mini berms (duck ponds) are compact and easy to store but deploys in a moment's notice to respond to a spill.
- Berms fold down and can be secured using the attached strap – provides simple and convenient transport and storage.
- Foam sidewalls (6”H) provide support but can be driven over / stepped on for easier equipment/vehicle placement.
- Heavy-duty 22 oz. PVC construction provides excellent chemical compatibility.
Applications
- Capturing leaks under trucks and other vehicles on site.
- Storage pad for equipment or liquid containers, cans or drums.
- Containment for fuel transfers from tank to truck.
- Maintenance or repairs done on equipment in the field.
- Spill containment for batteries, compressors and small drums.
| Part # | Dimensions in. (mm) | Dimensions ft. (m) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|---|
| 8850 | 24 x 24 x 6 (609.6 x 609.6 x 152.4) | 2 x 2 x .5 (.6 x .6 x .2) | 15 (56.8) | 3.00 (1.4) |
| 8845 | 36 x 36 x 6 (914.4 x 914.4 x 152.4) | 3 x 3 x .5 (.9 x .9 x .2) | 33 (125) | 5 (2.27) |
| 8852 | 48 x 48 x 6 (1219.2 x 1219.2 x 152.4) | 4 x 4 x .5 (1.2 x 1.2 x .2) | 60 (227.1) | 7.00 (3.2) |
| 8854 | 72 x 48 x 6 (1828.8 x 1219.2 x 152.4) | 4 x 6 x .5 (1.2 x 1.8 x .2) | 75 (283.9) | 9.00 (4.1) |
| 8846 | 60 x 60 x 6 (1524 x 1524 x 152.4) | 5 x 5 x .5 (1.5 x 1.5 x .2) | 93.5 (354) | 9 (4.1) |
| 8847 | 72 x 72 x 6 (1829 x 1829 x 152.4) | 6 x 6 x .5 (1.8 x 1.8 x .2) | 134.5 (509.14) | 12 (5.44) |
Swipe to scroll table
Convert This Containment Berm Into a Plastic Pellets Containment Berm
If you need to contain plastic pellets (“nurdles”), this containment berm can be shipped with one or more 6″ drains to provide quick draining of water while still containing plastic pellets.
FAQs
Resources & Docs
Compliance & Regs
Additional Info.
FAQs
Frequently Asked Questions
-
What are the Ultra-Containment Berm, Mini Foam Wall Models made from?
First of all, thank you for using the full product name in your question. Our SEO team will really appreciate that!
Secondly, they are made with 22 oz. PVC.
-
Are custom sizes available? How about custom colors?
Custom sizes and colors are available. Please contact us for minimum order quantities and other information.
Resources & Docs
Compliance & Regs
This product may not address any specific regulations but if you have any questions, we’re here to help.
Additional Info.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416088502 Ultra-Containment Berm Mini Foam Wall Model - 2x2 (Part #8850)
- UPC 808416101454 Ultra-Containment Berm Mini Foam Wall Model - 3x3 (Part #8845)
- UPC 808416088526 Ultra-Containment Berm Mini Foam Wall Model - 4x4 (Part #8852)
- UPC 808416088540 Ultra-Containment Berm Mini Foam Wall Model- 4x6 (Part #8854)
- UPC 808416101461 Ultra-Containment Berm Mini Foam Wall Model - 5x5 (Part #8846)
- UPC 808416101478 Ultra-Containment Berm Mini Foam Wall Model - 6x6 (Part #8847)
WARNING: Part #8850, #8845, #8852, #8854, #8846 and #8847 can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.gov
