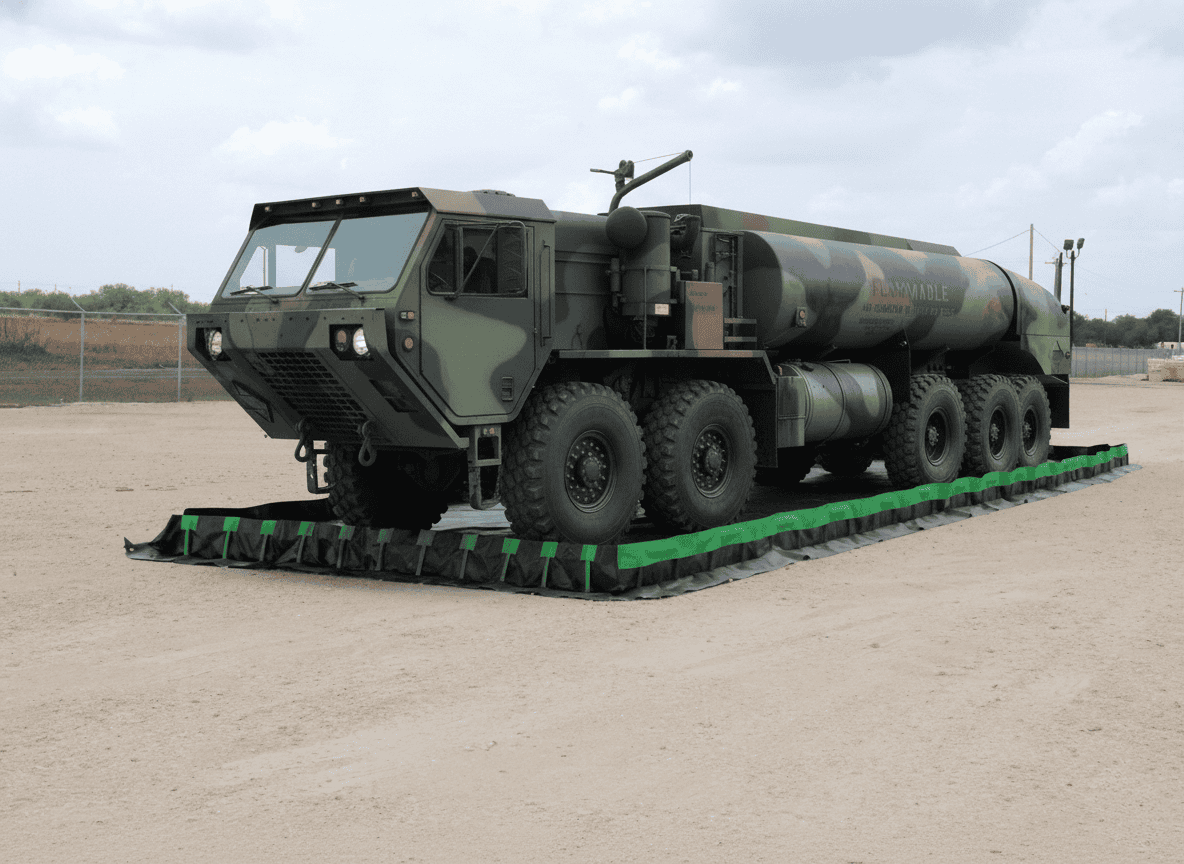

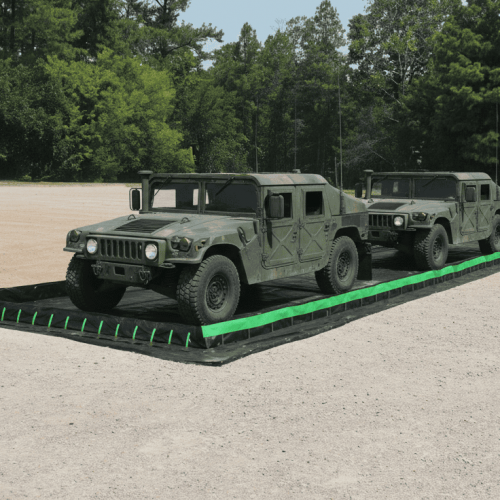

The Ultra-Containment Berm, Ultimate Model is the perfect combination of convenience and economy when it comes to capturing leaks and spills that often occur during equipment maintenance or the transportation of containment drums. This spill containment berm features 12” walls that are supported with a unique “living hinge” that gives them the ability to bend under equipment and snap back into place.
NOTE: Unless otherwise noted, all listed product measurements are L x W x H, outside dimensions, and for a single unit where quantity is more than one.
| Part # | Dimensions ft. (m) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| 8500 | 4 x 6 x 1 (1.2 x 1.8 x .3) | 179 (677) | 72 (32.7) |
| 8501 | 10 x 10 (3.0 x 3.0) | 748 (2831) | 176.0 (79.8) |
| 8502 | 12 x 26 (3.7 x 7.9) | 2,333 (8,831) | 189.0 (85.7) |
| 8509 | 12 x 36 x 1 (3.7 x 11 x .3) | 3,231 (12,230) | 283.0 (128.4) |
| 8505 | 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 297.0 (134.5) |
| 8508 | 14 x 54 x 1 (4.3 x 16.5 x .3) | 5,655 (21,406) | 368 (166.9) |
| 8510 | 14 x 56 x 1 (4.3 x 17.1 x .3) | 5,864 (22,197) | 408.0 (185.1) |
| 8506 | 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 326 (147.9) |
| 8507 | 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 405 (183.7) |
The new “All-In-One” option for the Ultra-Containment Berm has all of the extra protection you need built right in. Both the Ground Tarp and Track Belts are pre-attached (welded or heat-sealed) depending on the materials used to make your berm. Once you unpackage the berm and set it up, it will be ready to use with the additional protection already in place.
The Ultra-Berm Repair Kit contains everything needed to make most repairs to any Ultra-Containment Berm. Kit includes: (1) Tool Box, (1) Heat Gun – 110 volt, (1) Hand Roller, (4) replacement handles, (50) each of the following: 2” round patches, 4” round patches, 4”x12” patches.
For smaller repairs, an 11” x 36” piece of Ultra-Containment Berm material is available. Please contact us for more information.
If you need to contain plastic pellets (“nurdles”), this containment berm can be shipped with one or more 6″ drains to provide quick draining of water while still containing plastic pellets.
PVC: Max 150°F, Min: -20°F
Copolymer-2000: Max 160°F, Min: -25°F
Copolymer 2000 – 25 oz. / sq. yard
PVC – 22 oz. / sq. yard
If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.
Yes, we can make containment berms in custom sizes in virtually any length and width.
Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.
Ultra-Containment Berms ship from our factory in N. Augusta, SC 29860 at class 125.
The repair kit is simply an 11” x 36” piece of matching material and instructions on how to apply it to the berm. The only other item required is an industrial heat gun.
The ground tarp provides added protection from punctures or damage from beneath the Ultra-Containment Berm. Standard procedure is to sweep the area of any rocks or debris, then place the ground tarp down followed by the containment berm.
For smaller standard sized berms, the 11′ x 11′ ground tarp is recommended (Part# 8311). For larger berms, the general rule of thumb is to add 4′ to both the length and width dimensions of the berm. (e.g. a 16′ x 64′ ground tarp would be used for a 12′ x 60′ containment berm.)
Track belts are strips of very heavy-duty material (Reinforced PVC) that lay down inside of the berm. They take the wear and tear from tires of the vehicles that are driving in and out of the berms. Thereby extending the life of the product.
